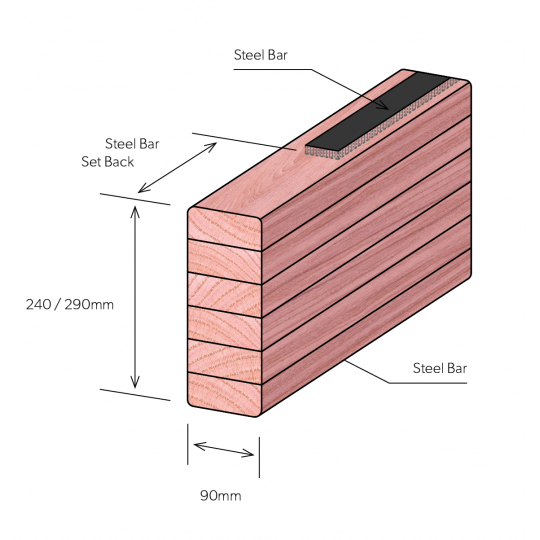

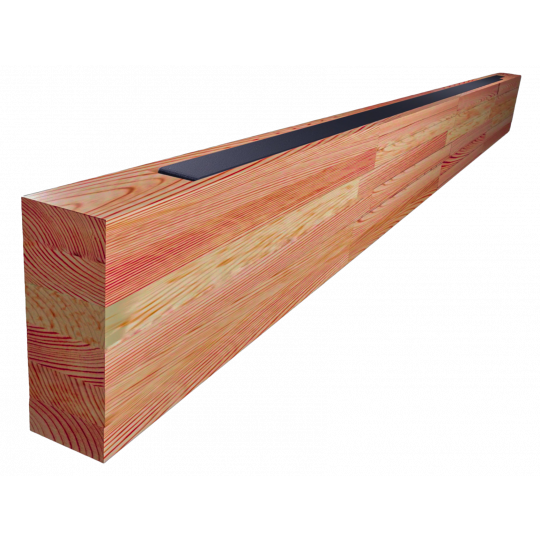

Prolam PLX20 steel reinforced laminated timber beam offers unparalleled load bearing capacity and spanning capability. Non-Visual Grade Beams are structurally engineered timber elements with high strength and dimensional stability intended for use in applications where appearance is unimportant. All appearance blemishes are permitted in this grade. The surfaces are machined, but machine skip is permissible and blemishes, voids and manufacturing will remain unrepaired. Loose, knots, wane, pith and open knot holes may be present. H1.2 Treatment is dyed pink.

• Standard lengths: 3.6, 4.2, 4.8, 5.4, 6.0, 6.6,
• Will not twist and warp like solid timber
• Structurally Stable
• PRODUCTION Leadtime: Approx 10 Working Days

Click Here to access Prolam Website

• Superior strength
• Great spanning capabilities
• Structurally stable
• Sustainable

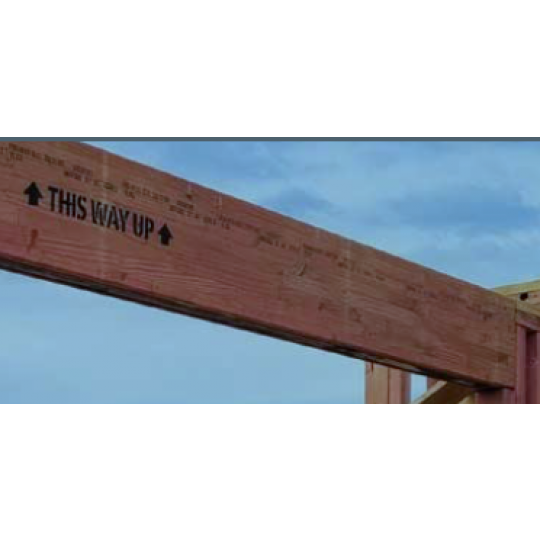

• Ideal for wide spans & garage door lintels
• Stock sizing - 240, & 290 x 90mm
• Stock lengths - 3.6, 4.2, 4.8, 5.4, 6.0, 6.6m
• Steel lengths - 3.2, 3.6, 4.2, 4.7, 5.3, 6.0m

PLX20 can now be specified by  Prolam Pro online specifier.  Specify with certainty with our online calculator!
