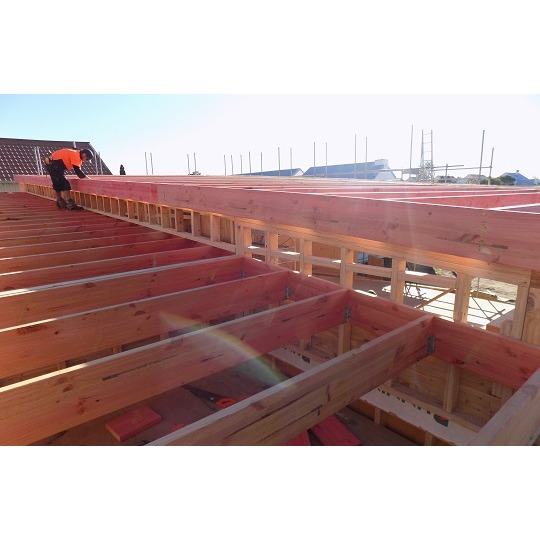

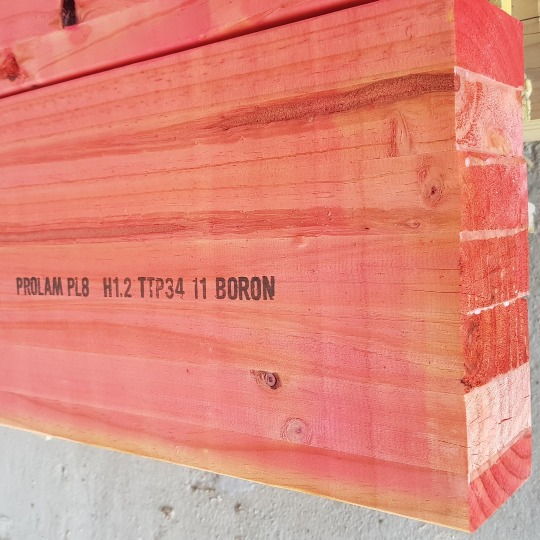

The Prolam Lintels are structurally engineered timber elements with high strength and dimensional stability intended intended for use in applications where appearance is unimportant. All appearance blemishes are permitted in this grade. The surfaces are machined, but machine skip is permissible and blemishes, voids and manufacturing will remain unrepaired. Loose, knots, wane, pith and open knot holes may be present. Prolam PL8, PL12, and PL17 lintels are treated to H1.2.
Timber used for laminating is carefully selected for production and graded according to strict Prowood specifications. All timber stock is kiln dried, to 13% average moisture content, to ensure efficient bonding in the gluing operations.
The laminations are machine finger jointed if required, with glue being cured by state of the art European press systems and controlled temperature. Prolam PL8 Glulam products are available in visual and non-visual utility grades and are pre-cambered to Prolam's specific precamber. Un-cambered Prolam PL8, PL12, and PL17 beams are available to order.
Prolam PL8, PL12, PL17 beams are manufactured to the wide range of sizes specified by the Prolam Pro online specifier which are manufactured to AS/NZS 1328, and are designed to comply with B1, B2, C and F2 of the NZ building code.
Lintel beams are manufactured to the wide range of sizes specified by the Prolam Pro online specifier. Specify with accuracy using the online Calculator!
|
Description |
Pack Size |
Pack / LM |
PL8 |
||

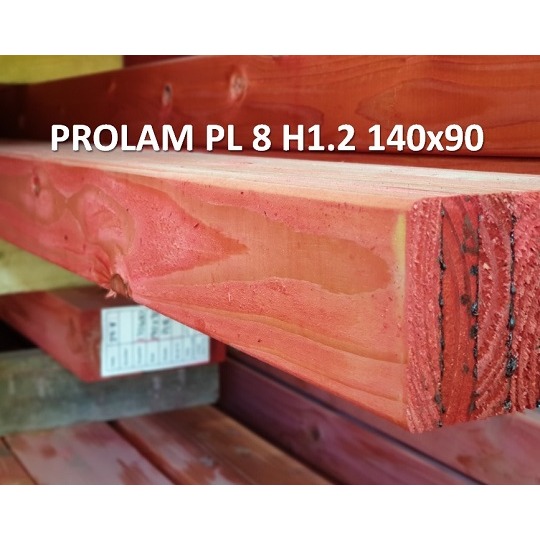

| PROLAM 140x90 Non-Vis PL8 H1.2 KD G4S | 24 | $20.13 |
| PROLAM 190x90 Non-Vis PL8 H1.2 KD G4S | 18 | $27.20 |
| PROLAM 140x140 Non-Vis PL8 H1.2 KD G4S | 16 | $33.30 |

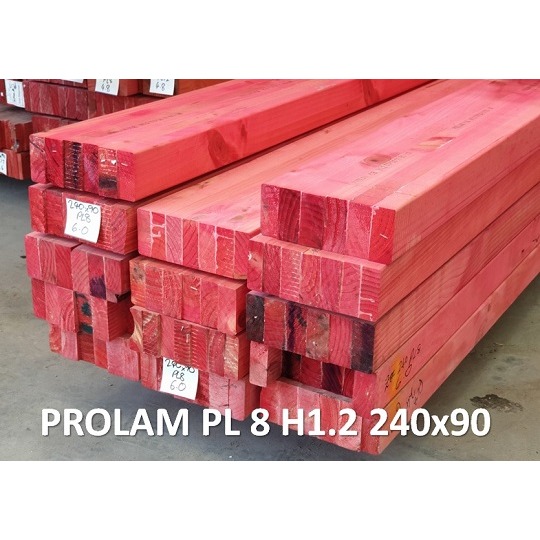

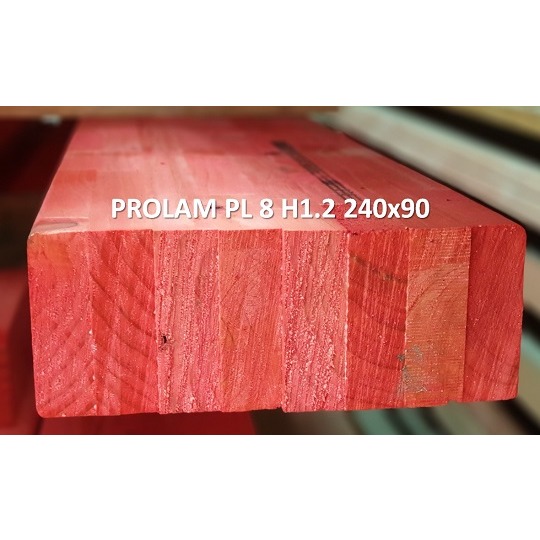

| PROLAM 240x90 Non-Vis PL8 H1.2 KD G4S | 15 | $33.80 |
| PROLAM 190x140 Non-Vis PL8 H1.2 KD G4S | 12 | $44.44 |
| PROLAM 290x90 Non-Vis PL8 H1.2 KD G4S | 12 | $54.70 |
| PROLAM 240x140 Non-Vis PL8 H1.2 KD G4S | 10 | $55.50 |
| PROLAM 315x90 Non-Vis PL8 H1.2 KD G4S | 12 | $63.33 |
| PROLAM 290x140 Non-Vis PL8 H1.2 KD G4S | 8 | $88.95 |
| PROLAM 360x90 Non-Vis PL8 H1.2 KD G4S | 9 | $96.35 |
| PROLAM 405X90 Non-Vis PL8 H1.2 KD G4S | 9 | $109.34 |
| PROLAM 450x90 Non-Vis PL8 H1.2 KD G4S | 9 | $120.26 |
PL12 |
||

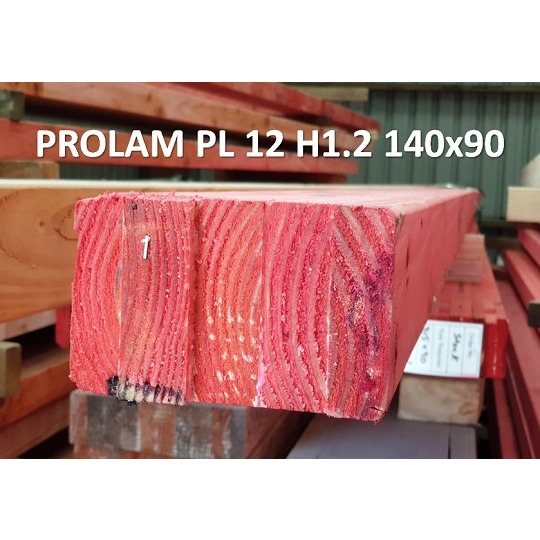

| PROLAM 140x90 Non-Vis (PL12) H1.2 KD G4S | 24 | $29.84 |

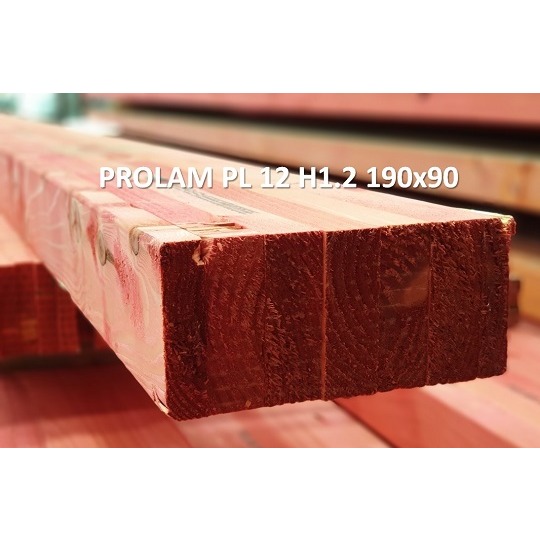

| PROLAM 190x90 Non-Vis (PL12) H1.2 KD G4S | 18 | $42.34 |
| PROLAM 240x90 Non-Vis (PL12) H1.2 KD G4S | 15 | $52.84 |
| PROLAM 290x90 Non-Vis (PL12) H1.2 KD G4S | 12 | $70.27 |
| PROLAM 315x90 Non-Vis (PL12) H1.2 KD G4S | 12 | $80.04 |
| PROLAM 360x90 Non-Vis (PL12) H1.2 KD G4S | 9 | $121.64 |
| PROLAM 405X90 Non-Vis (PL12) H1.2 KD G4S | 9 | $138.22 |
| PROLAM 450x90 Non-Vis (PL12) H1.2 KD G4S | 9 | $229.65 |
PL17 |
||

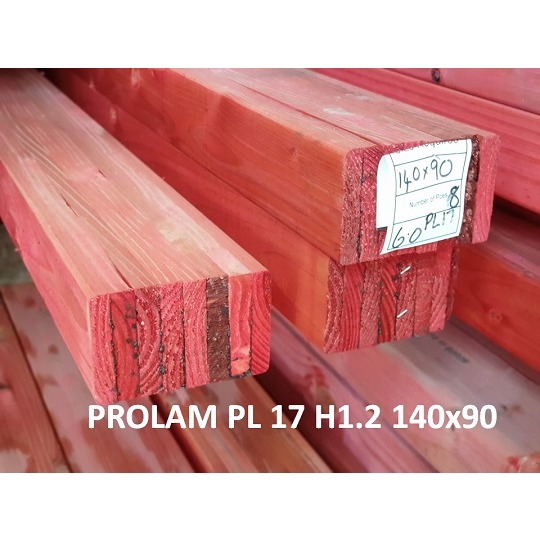

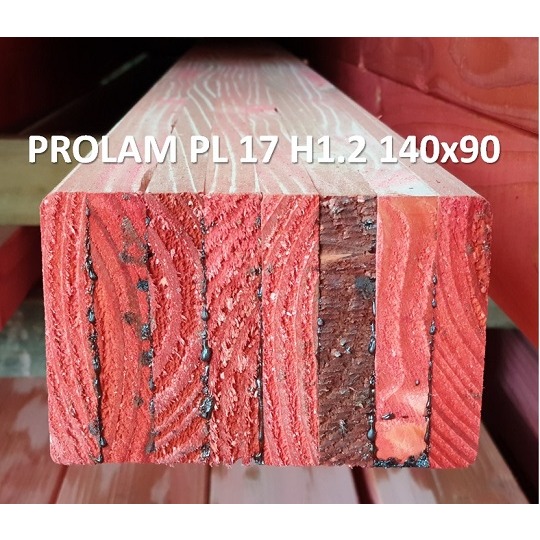

| PROLAM 140x90 Non-Vis [PL17] H1.2 KD G4S | 24 | $64.01 |

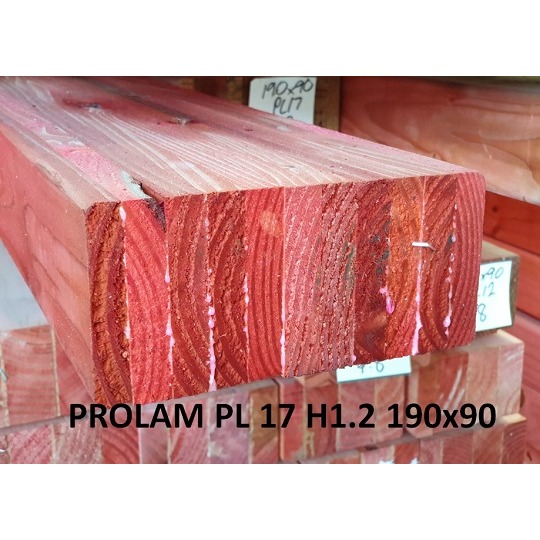

| PROLAM 190x90 Non-Vis [PL17] H1.2 KD G4S | 18 | $85.34 |

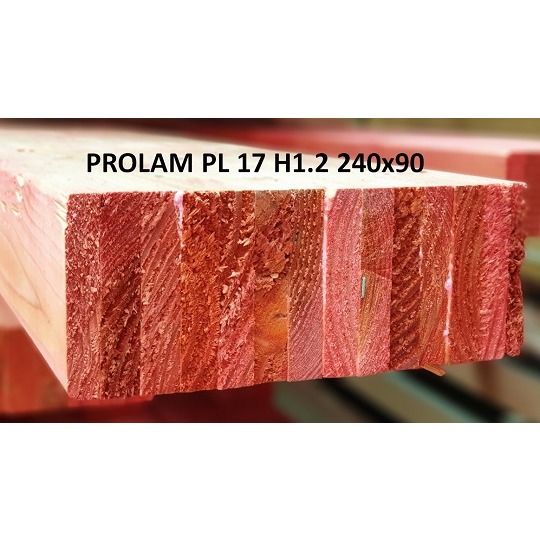

| PROLAM 240x90 Non-Vis [PL17] H1.2 KD G4S | 15 | $109.08 |

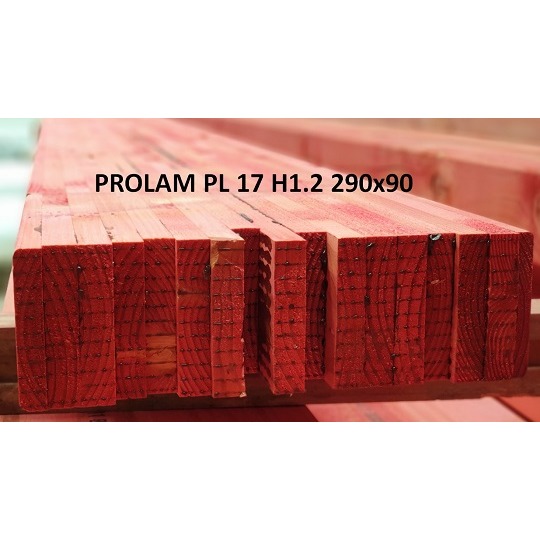

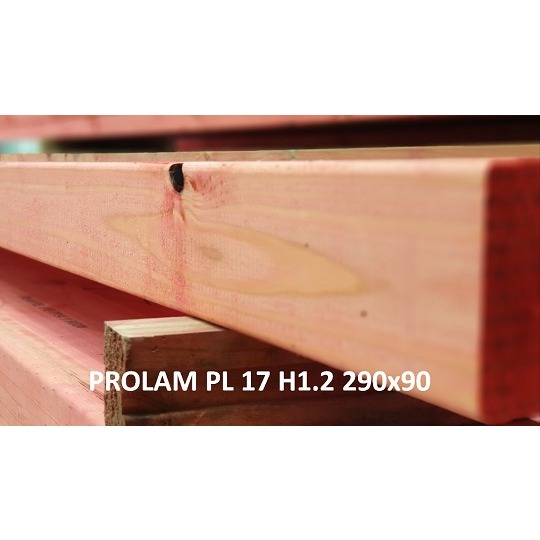

| PROLAM 290x90 Non-Vis [PL17] H1.2 KD G4S | 12 | $127.66 |
| PROLAM 315x90 Non-Vis [PL17] H1.2 KD G4S | 12 | $145.22 |
Available Lengths: 3.6, 4.2, 4.8, 5.4, 6.0
